CY25561 Spread Spectrum Clock Generator

CY25561 Description

CY25561 Spread Spectrum Clock Generator Spread Spectrum Clock Generator .

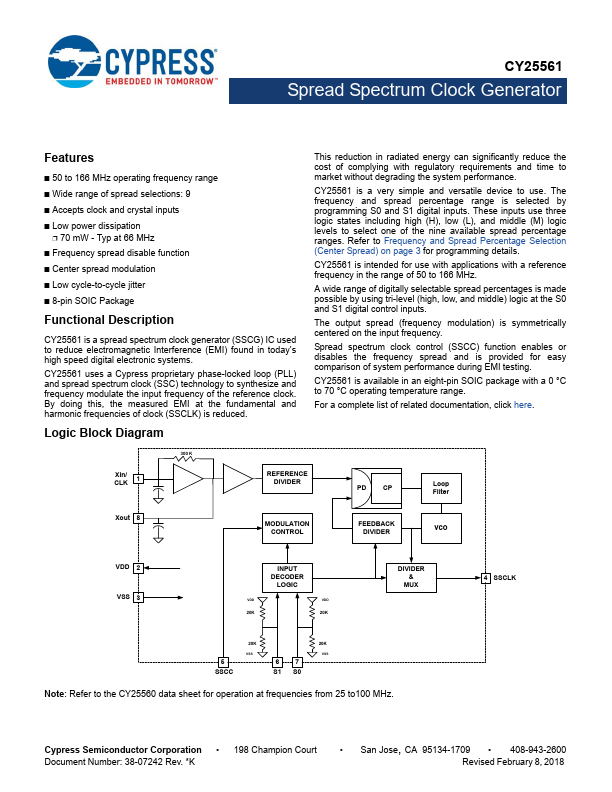

CY25561 is a spread spectrum clock generator (SSCG) IC used to reduce electromagnetic Interference (EMI) found in today’s high speed digital electroni.

CY25561 Features

* 50 to 166 MHz operating frequency range
* Wide range of spread selections: 9
* Accepts clock and crystal inputs
* Low power dissipation
* 70 mW - Typ at 66 MHz
* Frequency spread disable function
* Center spread modulation
* Low cycle-to-cycle jitter
* 8-pin SOI

CY25561 Applications

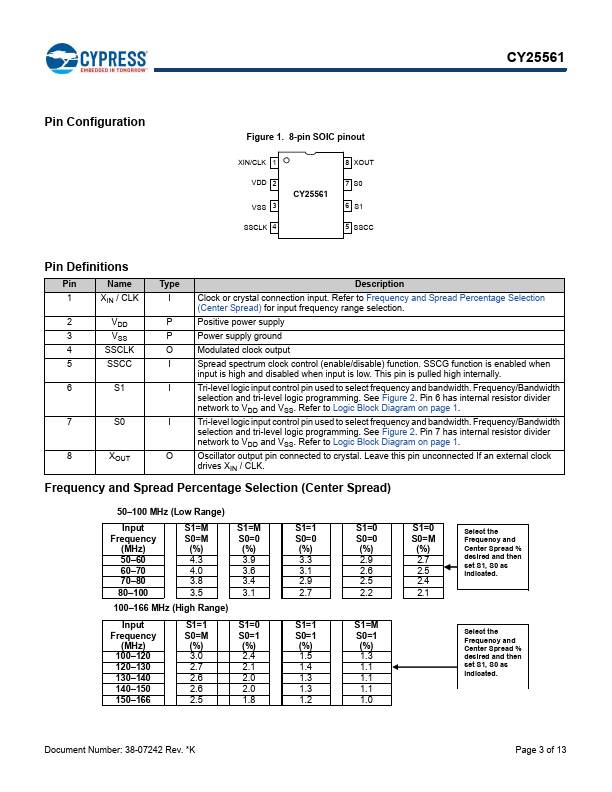

* with a reference frequency in the range of 50 to 166 MHz. A wide range of digitally selectable spread percentages is made possible by using tri-level (high, low, and middle) logic at the S0 and S1 digital control inputs. The output spread (frequency modulation) is symmetrically centered on the input
