CY25562 Datasheet - Cypress Semiconductor

CY25562 Spread Spectrum Clock Generator

Pin # 1 2 3 4 5 6 Pin Name Xin/CLK VDD GND SSCLK SSCC S1 Type I P P O I I Positive power supply Power supply ground SSCG modulated clock output Spread spectrum clock control (enable/disable) function. SSCG function is enabled when input is high and disabled when input is low. This pin is pulled high.

CY25562 Features

* Applications

* 50 to 200 MHz Operating Frequency Range Wide range of spread selections: 9 Accepts Clock and Crystal Inputs Low Power Dissipation

* 70 mW Typ (Fin = 65 MHz) Frequency Spread Disable Function Center Spread Modulation Low Cycle-to-cycle Jitt

CY25562_CypressSemiconductor.pdf

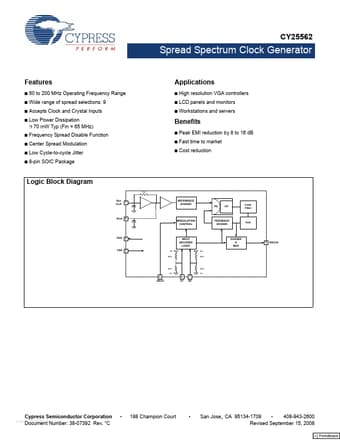

CY25562 Datasheet Preview — Preview of CY25562 PDF

Datasheet Details

Part number:

CY25562

Manufacturer:

Cypress Semiconductor

File Size:

616.72 KB

Description:

Spread spectrum clock generator.
