CY25568 Spread Spectrum Clock Generator

2 Absolute Maximum Ratings 3 DC Electrical Characteristics 3 Timing Electrical Characteristics 3 Input Frequency Range and Selection 4 Output Clocks 4 REFOUT 4 SSCLK1, 2 and 3 4 Spread% Selection 5 3-Level Digital Inputs 5 Power Down (PD#) 6 Modulation Rate 6 Characteristic Curves 7 SSC.

CY25568 Features

* Applications

* 4 to 32 MHz Input frequency range 4 to 128 MHz Output frequency range accepts clock, crystal and resonator Inputs 1x, 2x and 4x frequency multiplication Non-modulated reference freque

CY25568_CypressSemiconductor.pdf

Preview of CY25568 PDF

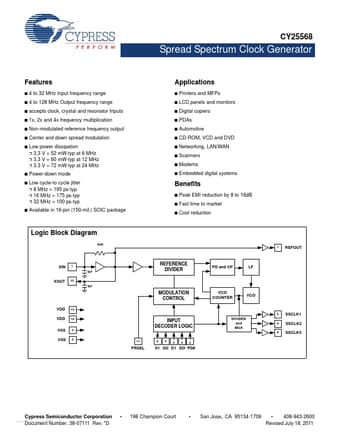

CY25568 Datasheet Preview Page 2 CY25568 Datasheet Preview Page 3

Datasheet Details

Part number:

CY25568

Manufacturer:

Cypress Semiconductor

File Size:

353.95 KB

Description:

Spread spectrum clock generator.
