CY28354-400 210-MHz 24-Output Buffer

The CY28354-400 is a 2.5V buffer designed to distribute high-speed clocks in PC applications. The part has 24 outputs to support four unbuffered DDR DIMMS. The CY28354-400 can be used in conjunction with CY28326 similar clock synthesizer for the PTT880 and KTT880 chipsets. The CY28354-400 also inclu.

CY28354-400 Features

* Supports VIA PRO 266, KT266 and P4x266

* Dual 1- to 12-output buffer/driver

* Supports up to four DDR DIMMs

* Low-skew outputs (< 75 ps)

* Supports 266-MHz, 333-MHz and 400-MHz DDR SDRAM

* SMBus Read and Write support

* Space-saving 48-pin SS

CY28354-400-CypressSemiconductor.pdf

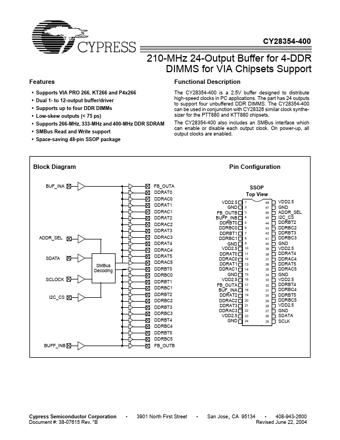

CY28354-400 Datasheet Preview — Preview of CY28354-400 PDF

Datasheet Details

Part number:

CY28354-400

Manufacturer:

Cypress Semiconductor

File Size:

210.11 KB

Description:

210-mhz 24-output buffer.
