CY7C1010DV33

2-Mbit (256 K x 8) Static RAM

CY7C1010DV33 Features

* Pin and function compatible with CY7C1010CV33

* High speed

* tAA = 10 ns

* Low active power

* ICC = 90 mA at 10 ns

* Low CMOS standby power

* ISB2 = 10 mA

* 2.0 V data retention

* Automatic power down when deselected

* TTL-compatible inputs and outputs

CY7C1010DV33 General Description

The CY7C1010DV33 is a high performance CMOS Static RAM organized as 256 K words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and three-state drivers. Writing to the device is accomplished by taking Chip Enable (CE) and Write Enable.

CY7C1010DV33 Datasheet (827.33 KB)

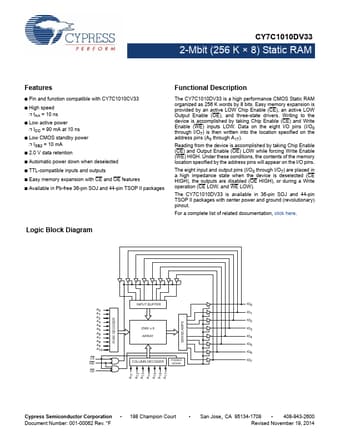

Preview of CY7C1010DV33 PDF

Datasheet Details

Part number:

CY7C1010DV33

Manufacturer:

Cypress Semiconductor

File Size:

827.33 KB

Description:

2-mbit (256 k x 8) static ram.
