CY7C1006D - 1-Mbit (256K x 4) Static RAM

This page provides the datasheet information for the CY7C1006D, a member of the CY7C106D 1-Mbit (256K x 4) Static RAM family.

Datasheet Summary

Description

The CY7C106D [1] and CY7C1006D [1] are high-performance CMOS static RAMs organized as 262,144 words by 4 bits.

Easy memory expansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and tri-state drivers.

Features

  • Pin- and function-compatible with CY7C106B/CY7C1006B.
  • High speed.
  • tAA = 10 ns.
  • Low active power.
  • ICC = 80 mA @ 10 ns.
  • Low CMOS standby power.
  • ISB2 = 3.0 mA.
  • 2.0 V Data Retention.
  • Automatic power-down when deselected.
  • CMOS for optimum speed/power.
  • TTL-compatible inputs and outputs.
  • CY7C106D available in Pb-free 28-pin 400-Mil wide Molded SOJ package. CY7C1006D available in Pb-free 28-pin 300-Mil wide Molded SOJ package Functional Descr.

📥 Download Datasheet

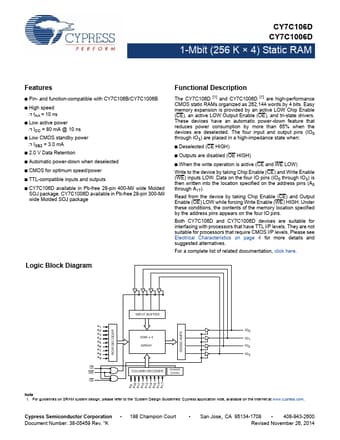

Datasheet preview – CY7C1006D
