CY7C1007

(CY7C107 / CY7C1007) 1M x 1 Static RAM

CY7C1007 Features

* High speed

* tAA = 12 ns

* CMOS for optimum speed/power

* Low active power

* 825 mW

* Low standby power

* 275 mW

* 2.0V data retention (optional)

* 100 µW

* Automatic power-down when deselected

* TTL-compatible

CY7C1007 General Description

The CY7C107 and CY7C1007 are high-performance CMOS static RAMs organized as 1,048,576 words by 1 bit. Easy Logic Block Diagram DIN Pin Configuration SOJ Top View A10 A11 A12 A13 A14 A15 NC A16 A17 A18 A19 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 INPUT BUFFER A0 A.

CY7C1007 Datasheet (290.51 KB)

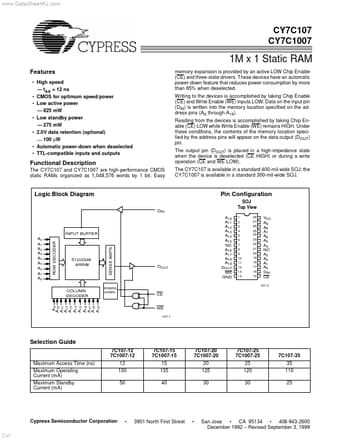

Preview of CY7C1007 PDF

Datasheet Details

Part number:

CY7C1007

Manufacturer:

Cypress Semiconductor

File Size:

290.51 KB

Description:

(cy7c107 / cy7c1007) 1m x 1 static ram.
