CY7C1006B

256K x 4 Static RAM

CY7C1006B Features

* High speed

* tAA = 12 ns

* CMOS for optimum speed/power

* Low active power

* 495 mW

* Low standby power

* 275 mW

* 2.0V data retention (optional)

* 100 µW

* Automatic power-down when deselected

* TTL-compatible

CY7C1006B General Description

The CY7C106B and CY7C1006B are high-performance CMOS static RAMs organized as 262,144 words by 4 bits. Easy memory expansion is provided by an active LOW Chip Logic Block Diagram Pin Configuration SOJ Top View A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 CE OE GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25.

CY7C1006B Datasheet (161.81 KB)

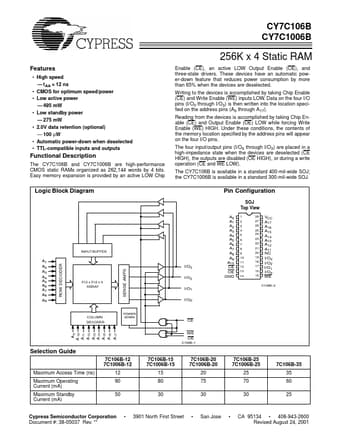

Preview of CY7C1006B PDF

Datasheet Details

Part number:

CY7C1006B

Manufacturer:

Cypress Semiconductor

File Size:

161.81 KB

Description:

256k x 4 static ram.
