CY7C1009D

1-Mbit (128 K x 8) Static RAM

Cypress Semiconductor

CY7C1009D Features

* Pin- and function-compatible with CY7C109B/CY7C1009B

* High speed

* tAA = 10 ns

* Low active power

* ICC = 80 mA at 10 ns

* Low CMOS standby power

* ISB2 = 3 mA

* 2.0 V Data Retention

* Automatic power-down when deselected

* TTL-compatible inputs and outputs

CY7C1009D General Description

The CY7C109D/CY7C1009D [1] is a high-performance CMOS static RAM organized as 131,072 words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE1), an active HIGH Chip Enable (CE2), an active LOW Output Enable Logic Block Diagram (OE), and tri-state drivers.The eight input .

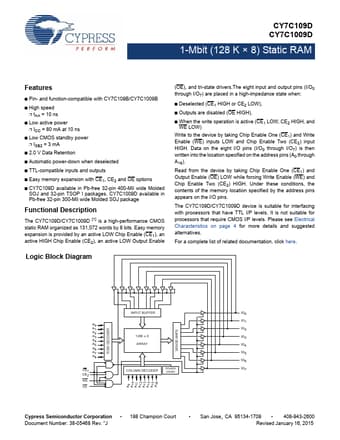

CY7C1009D Datasheet (773.21 KB)

CY7C1009D Datasheet Preview — Preview of CY7C1009D PDF

Datasheet Details

Part number:

CY7C1009D

Manufacturer:

Cypress Semiconductor

File Size:

773.21 KB

Description:

1-mbit (128 k x 8) static ram.
