CY7C1009B Datasheet - Cypress Semiconductor

CY7C1009B - 128K x 8 Static RAM

The CY7C109B / CY7C1009B is a high-performance CMOS static RAM organized as 131,072 words by 8 bits.

Easy memory expansion is provided by an active LOW Chip Enable (CE1), an active HIGH Chip Enable (CE2), an active LOW Out- Logic Block Diagram Pin Configurations SOJ Top View NC A16 A14 A12 A7 A6 A

CY7C1009B Features

* High speed

* tAA = 12 ns

* Low active power

* 495 mW (max. 12 ns)

* Low CMOS standby power

* 55 mW (max.) 4 mW

* 2.0V Data Retention

* Automatic power-down when deselected

* TTL-compatible inputs and outputs

* Easy mem

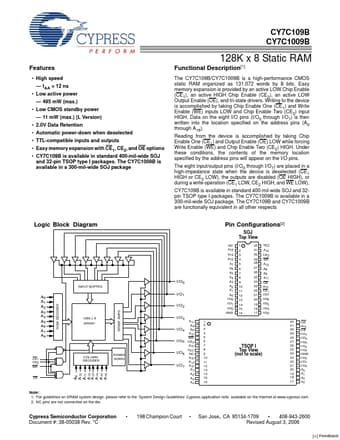

CY7C1009B_CypressSemiconductor.pdf

Preview of CY7C1009B PDF
CY7C1009B Datasheet Preview Page 2 CY7C1009B Datasheet Preview Page 3

Datasheet Details

Part number:

CY7C1009B

Manufacturer:

Cypress Semiconductor

File Size:

367.72 KB

Description:

128k x 8 static ram.
