CY7C1061DV33

16-Mbit (1 M X 16) Static RAM

CY7C1061DV33 Features

* High speed

* tAA = 10 ns

* Low active power

* ICC = 175 mA at 100 MHz

* Low CMOS standby power

* ISB2 = 25 mA

* Operating voltages of 3.3 ± 0.3 V

* 2.0 V data retention

* Automatic power down when deselected

* TTL compatible inputs and outputs

* Easy mem

CY7C1061DV33 General Description

The CY7C1061DV33 is a high performance CMOS Static RAM organized as 1,048,576 words by 16 bits. To write to the device, take Chip Enables (CE1 LOW and CE2 HIGH) and Write Enable (WE) input LOW. If Byte Low Enable (BLE) is LOW, then data from I/O pins (I/O0 through I/O7), is written into the location.

CY7C1061DV33 Datasheet (1.70 MB)

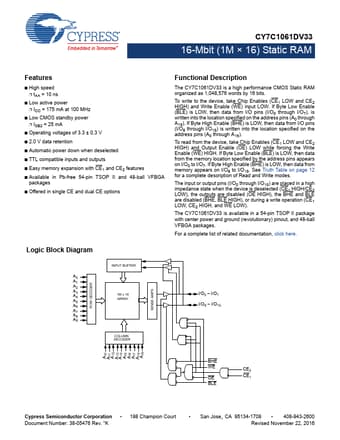

Preview of CY7C1061DV33 PDF

Datasheet Details

Part number:

CY7C1061DV33

Manufacturer:

Cypress

File Size:

1.70 MB

Description:

16-mbit (1 m x 16) static ram.
