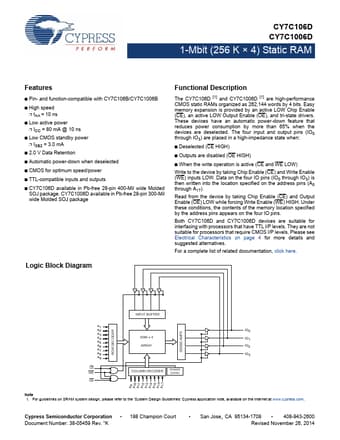

CY7C106D - 1-Mbit (256K x 4) Static RAM

Cypress

Datasheet Details

The CY7C106D [1] and CY7C1006D [1] are high-performance CMOS static RAMs organized as 262,144 words by 4 bits.

Pin- and function-compatible with CY7C106B/CY7C1006B.
High speed.
tAA = 10 ns.
Low active power.
ICC = 80 mA @ 10 ns.
Low CMOS standby power.
ISB2 = 3.0 mA.
2.0 V Data Retention.
Automatic power-down when deselected.
CMOS for optimum speed/power.
TTL-compatible inputs and outputs.
CY7C106D available in Pb-free 28-pin 400-Mil wide Molded SOJ package. CY7C1006D available in Pb-free 28-pin 300-Mil wide Molded SOJ package Functional Descr.
