CY7C1061AV33

16-Mbit (1 M 횞 16) Static RAM

CY7C1061AV33 Features

* High speed

* tAA = 10 ns

* Low active power

* 990 mW (max)

* Operating voltages of 3.3 ± 0.3 V

* 2.0 V data retention

* Automatic power down when deselected

* TTL compatible inputs and outputs

* Easy memory expansion with CE1 and CE2 features

* Available in

CY7C1061AV33 General Description

The CY7C1061AV33 is a high performance CMOS Static RAM organized as 1,048,576 words by 16 bits. To write to the device, enable the chip (CE1 LOW and CE2 HIGH) while forcing the Write Enable (WE) input LOW. If Byte Low Enable (BLE) is LOW, then data from I/O pins (I/O0 through I/O7), is written into .

CY7C1061AV33 Datasheet (443.06 KB)

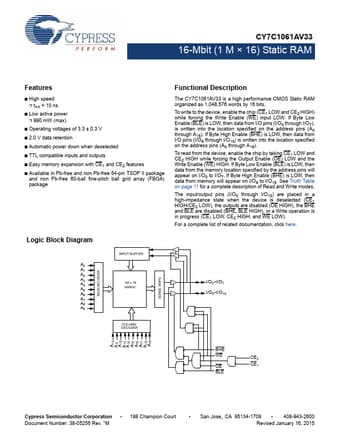

Preview of CY7C1061AV33 PDF

Datasheet Details

Part number:

CY7C1061AV33

Manufacturer:

Cypress Semiconductor

File Size:

443.06 KB

Description:

16-mbit (1 m 횞 16) static ram.
