CY7C1061G

16-Mbit (1 M words x 16 bit) Static RAM

CY7C1061G Features

* High speed

* tAA = 10 ns

* Temperature range

* Automotive-E:

* 40 °C to 125 °C

* Embedded error-correcting code (ECC) for single-bit error correction

* Low active and standby currents

* ICC = 90-mA typical at 100 MHz

* ISB2 = 20-mA typical

* Operating vol

CY7C1061G General Description

CY7C1061G[1] is a high-performance CMOS fast static RAM automotive part with embedded ECC. ECC logic can detect and correct single-bit error in read data word during read cycles. This device has single chip enable input and is accessed by asserting the chip enable input (CE) LOW. To perform data wri.

CY7C1061G Datasheet (433.76 KB)

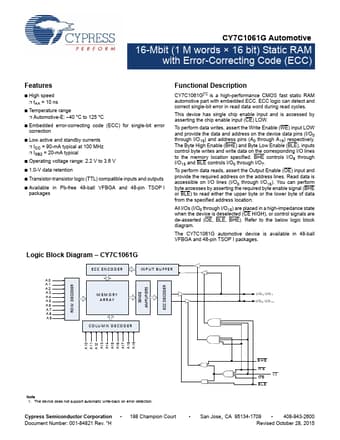

Preview of CY7C1061G PDF

Datasheet Details

Part number:

CY7C1061G

Manufacturer:

Cypress

File Size:

433.76 KB

Description:

16-mbit (1 m words x 16 bit) static ram.
CY7C1061G Automotive 16-Mbit (1 M words × 16 bit) Static RAM with Error-Correcting Code (ECC) 16-Mbit (1 M words × 16 bit) Static RAM with Error-Corr.
