CY7C1007D - 1-Mbit (1 M x 1) Static RAM

This page provides the datasheet information for the CY7C1007D, a member of the CY7C107D 1-Mbit (1 M x 1) Static RAM family.

Description

The CY7C107D [1] and CY7C1007D [1] are high-performance CMOS static RAMs organized as 1,048,576 words by 1 bit.

Easy memory expansion is provided by an active LOW Chip Enable (CE) and tri-state drivers.

Features

  • Pin- and function-compatible with CY7C107B/CY7C1007B.
  • High speed.
  • tAA = 10 ns.
  • Low active power.
  • ICC = 80 mA @ 10 ns.
  • Low complementary metal oxide semiconductor (CMOS) standby power.
  • ISB2 = 3 mA.
  • 2.0 V data retention.
  • Automatic power-down when deselected.
  • CMOS for optimum speed/power.
  • Transistor transistor logic (TTL) compatible inputs and outputs.
  • CY7C107D available in Pb-free 28-pin 400-Mil wide Molded SOJ package. CY7C1007D availab.

📥 Download Datasheet

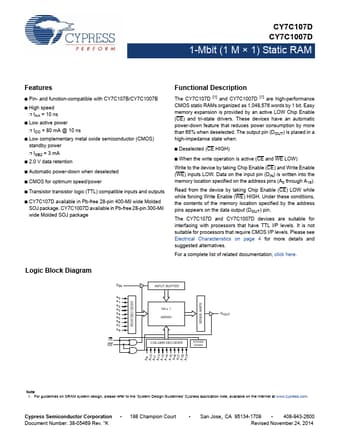

Datasheet preview – CY7C1007D
