CY7C144 - 8K x 9/0 Dual-Port Static RAM

Datasheet Summary

Description

The CY7C144 and CY7C145 are high-speed CMOS 8K x 8 and 8K x 9 dual-port static RAMs.

Various arbitration schemes are included on the CY7C144/5 to handle situations when multiple processors access the same piece of data.

Features

  • True Dual-Ported memory cells which allow simultaneous reads of the same memory location.
  • 8K x 8 organization (CY7C144).
  • 8K x 9 organization (CY7C145).
  • 0.65-micron CMOS for optimum speed/power.
  • High-speed access: 15ns.
  • Low operating power: ICC = 160 mA (max. ).
  • Fully asynchronous operation.
  • Automatic power-down.
  • TTL compatible.
  • Master/Slave select pin allows bus width expansion to 16/18 bits or more.

📥 Download Datasheet

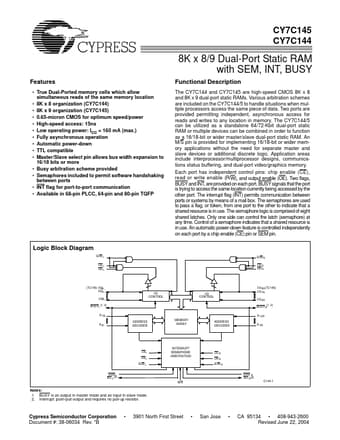

Datasheet preview – CY7C144

Datasheet Details

Part number CY7C144
Manufacturer Cypress Semiconductor
File Size 730.11 KB
Description 8K x 9/0 Dual-Port Static RAM
Datasheet download datasheet CY7C144 Datasheet
Additional preview pages of the CY7C144 datasheet.

📁 Similar Datasheet

  • CY7C1460SV25 - 36-Mbit (1M x 36/2M x 18) Pipelined SRAM (Cypress)
  • CY7C1462SV25 - 36-Mbit (1M x 36/2M x 18) Pipelined SRAM (Cypress)
  • CY7C1006D - 1-Mbit (256K x 4) Static RAM (Cypress)
  • CY7C1011G - 2-Mbit (128K words x 16 bit) Static RAM (Cypress)
  • CY7C1041G - 4-Mbit (256K words x 16 bit) Static RAM (Cypress)
  • CY7C1041GE - 4-Mbit (256K words x 16 bit) Static RAM (Cypress)
  • CY7C1041GN - 4-Mbit (256K words x 16 bit) Static RAM (Cypress)
  • CY7C1049GN - 4-Mbit (512K words x 8 bit) Static RAM (Cypress)
  • CY7C1061DV33 - 16-Mbit (1 M X 16) Static RAM (Cypress)
  • CY7C1061G - 16-Mbit (1 M words x 16 bit) Static RAM (Cypress)
Other Datasheets by Cypress Semiconductor

Full PDF Text Transcription

Click to expand full text
CY7C144 CY7C1458K x 8/9 Dual-Port Static RAM with SEM, INT, BUSY CY7C145 CY7C144 8K x 8/9 Dual-Port Static RAM with SEM, INT, BUSY Features • True Dual-Ported memory cells which allow simultaneous reads of the same memory location • 8K x 8 organization (CY7C144) • 8K x 9 organization (CY7C145) • 0.65-micron CMOS for optimum speed/power • High-speed access: 15ns • Low operating power: ICC = 160 mA (max.
