CY7C341B, 192-Macrocell MAX EPLD

USE ULTRA37000™ FOR ALL NEW DESIGNS CY7C341B 192-Macrocell MAX® EPLD .
The CY7C341B is an Erasable Programmable Logic Device (EPLD) in which CMOS EPROM cells are used to configure logic functions within the device.

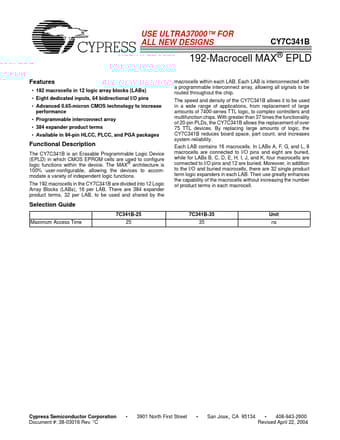

datasheet Preview Page 1 from Datasheet4u.com

CY7C341B_CypressSemiconductor.pdf

CY7C341B Datasheet Preview — Preview of CY7C341B PDF

Datasheet Details

Part number:

CY7C341B

Manufacturer:

Cypress Semiconductor

File Size:

334.83 KB

Description:

192-Macrocell MAX EPLD

Features

* 192 macrocells in 12 logic array blocks (LABs)
* Eight dedicated inputs, 64 bidirectional I/O pins
* Advanced 0.65-micron CMOS technology to increase performance
* Programmable interconnect array
* 384 expander product terms
* Available in 84-pin HLC

Applications

* from replacement of large amounts of 7400-series TTL logic, to complex controllers and multifunction chips. With greater than 37 times the functionality of 20-pin PLDs, the CY7C341B allows the replacement of over 75 TTL devices. By replacing large amounts of logic, the CY7C341B reduces board space,
