CYPD2104 Type-C Port Controller

EZ-PD™ CCG2 is a USB Type-C controller that complies with the latest USB Type-C and PD standards. EZ-PD CCG2 provides a complete USB Type-C and USB Power Delivery port control solution for passive cables, active cables, and powered accessories. It can also be used in many upstream and downstream .

CYPD2104 Features

* Integrated transceiver (baseband PHY)

* Integrated UFP (RD), EMCA (RA) termination resistors, and current sources for DFP (RP)

* Supports one USB Type-C port L

CYPD2103-CypressSemiconductor.pdf

This datasheet PDF includes multiple part numbers: CYPD2104, CYPD2103. Please refer to the document for exact specifications by model.

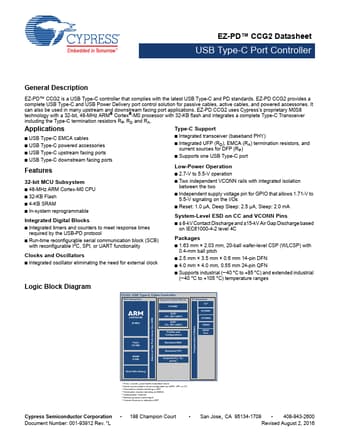

CYPD2104 Datasheet Preview Page 2 CYPD2104 Datasheet Preview Page 3

Datasheet Details

Part number:

CYPD2104, CYPD2103

Manufacturer:

Cypress Semiconductor

File Size:

1.25 MB

Description:

Type-c port controller.

Note:

This datasheet PDF includes multiple part numbers: CYPD2104, CYPD2103.
Please refer to the document for exact specifications by model.
