CYPD2120

Type-C Port Controller

Cypress Semiconductor

CYPD2120 Features

* Integrated transceiver (baseband PHY)

* Integrated UFP (RD), EMCA (RA) termination resistors, and current sources for DFP (RP)

* Supports one USB Type-C port L

CYPD2120 General Description

EZ-PD™ CCG2 is a USB Type-C controller that complies with the latest USB Type-C and PD standards. EZ-PD CCG2 provides a complete USB Type-C and USB Power Delivery port control solution for passive cables, active cables, and powered accessories. It can also be used in many upstream and downstream .

CYPD2120 Datasheet (1.25 MB)

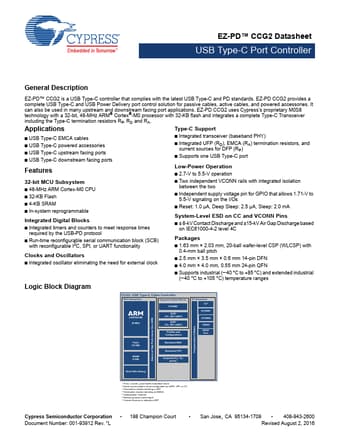

CYPD2120 Datasheet Preview — Preview of CYPD2120 PDF

Datasheet Details

Part number:

CYPD2120

Manufacturer:

Cypress Semiconductor

File Size:

1.25 MB

Description:

Type-c port controller.
