CYPD2125, CYPD2103 Datasheet - Cypress Semiconductor

CYPD2125, CYPD2103, Type-C Port Controller

EZ-PD™ CCG2 Datasheet USB Type-C Port Controller USB Type-C Port Controller General .
EZ-PD™ CCG2 is a USB Type-C controller that complies with the latest USB Type-C and PD standards.

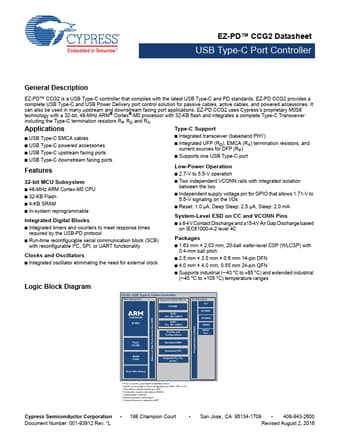

datasheet Preview Page 1 from Datasheet4u.com

CYPD2103-CypressSemiconductor.pdf

CYPD2125 Datasheet Preview — This datasheet PDF includes multiple part numbers: CYPD2125, CYPD2103. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CYPD2125, CYPD2103

Manufacturer:

Cypress Semiconductor

File Size:

1.25 MB

Description:

Type-C Port Controller

Note:

This datasheet PDF includes multiple part numbers: CYPD2125, CYPD2103.
Please refer to the document for exact specifications by model.

Features

* Integrated transceiver (baseband PHY)
* Integrated UFP (RD), EMCA (RA) termination resistors, and current sources for DFP (RP)
* Supports one USB Type-C port L

Applications

* EZ-PD CCG2 uses Cypress’s proprietary M0S8 technology with a 32-bit, 48-MHz ARM® Cortex®-M0 processor with 32-KB flash and integrates a complete Type-C Transceiver including the Type-C termination resistors RP, RD and RA. Applications Type-C Support
* USB Type-C EMCA cables
* USB Type-C
