CYPD2119, CYPD2103 Type-C Port Controller

Cypress Semiconductor

Description

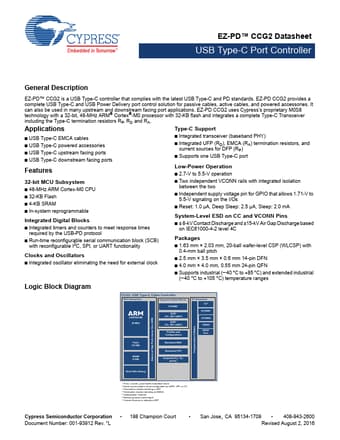

EZ-PD™ CCG2 Datasheet USB Type-C Port Controller USB Type-C Port Controller General .
EZ-PD™ CCG2 is a USB Type-C controller that complies with the latest USB Type-C and PD standards.

📥 Download Datasheet

CYPD2119 Datasheet Preview — This datasheet PDF includes multiple part numbers: CYPD2119, CYPD2103. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CYPD2119, CYPD2103
Manufacturer: Cypress Semiconductor
File Size: 1.25 MB
Datasheet: CYPD2103-CypressSemiconductor.pdf
Description: Type-C Port Controller
Note: This datasheet PDF includes multiple part numbers: CYPD2119, CYPD2103.
Please refer to the document for exact specifications by model.

Features

* Integrated transceiver (baseband PHY)
* Integrated UFP (RD), EMCA (RA) termination resistors, and current sources for DFP (RP)
* Supports one USB Type-C port L

Applications

* EZ-PD CCG2 uses Cypress’s proprietary M0S8 technology with a 32-bit, 48-MHz ARM® Cortex®-M0 processor with 32-KB flash and integrates a complete Type-C Transceiver including the Type-C termination resistors RP, RD and RA. Applications Type-C Support
* USB Type-C EMCA cables
* USB Type-C
