PUS-0515, PUS-0505, DC-DC Converter

DC-DC Converter UNIT PU Series ( 1W UNREGULATED DC-DC CONVERTER) .

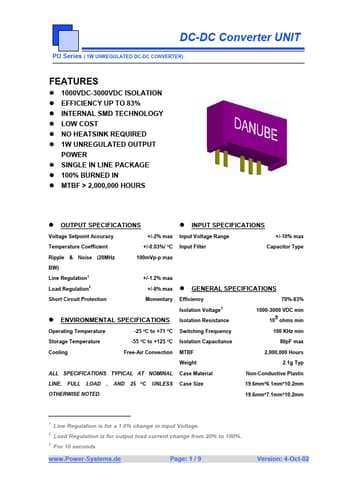

datasheet Preview Page 1 from Datasheet4u.com

PUS-0505-DANUBE.pdf

PUS-0515 Datasheet Preview — This datasheet PDF includes multiple part numbers: PUS-0515, PUS-0505. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PUS-0515, PUS-0505

Manufacturer:

DANUBE

File Size:

308.38 KB

Description:

DC-DC Converter

Note:

This datasheet PDF includes multiple part numbers: PUS-0515, PUS-0505.
Please refer to the document for exact specifications by model.

Features

* z 1000VDC-3000VDC ISOLATION z EFFICIENCY UP TO 83% z INTERNAL SMD TECHNOLOGY z LOW COST z NO HEATSINK REQUIRED z 1W UNREGULATED OUTPUT POWER z SINGLE IN LINE PACKAGE z 100% BURNED IN z MTBF > 2,000,000 HOURS z OUTPUT SPECIFICATIONS z INPUT SPECIFICATIONS Voltage Setpoint Accuracy +/-2% max Input

Applications

* SINGLE OUTPUT DUAL OUTPUT INPUT +Vin +Vout DC-DC CONVERTER -Vin -Vout OUTPUT INPUT OUTPUT LOAD +Vin +Vout DC-DC Common CONVERTER -Vin -Vout LOAD1 LOAD2 z TYPICAL PERFORMANCE CUREVES Specifications typical at TA=25 OC,nominal input voltage , rated output current unless otherwise specif
