DMN3009SSS, 30V N-CHANNEL MOSFET

DMN3009SSS 30V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 30V RDS(ON) max 5.5mΩ @ VGS = 10V 7.5mΩ @ VGS = 4.5V ID max TA = +25°C 15A .
and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal fo.

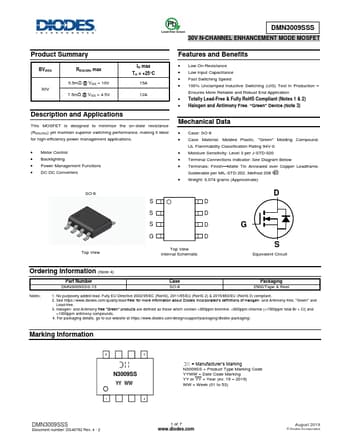

datasheet Preview Page 1 from Datasheet4u.com

DMN3009SSS-DIODES.pdf

DMN3009SSS Datasheet Preview — Preview of DMN3009SSS PDF

Datasheet Details

Part number:

DMN3009SSS

Manufacturer:

DIODES ↗

File Size:

473.95 KB

Description:

30V N-CHANNEL MOSFET

Features

* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* 100% Unclamped Inductive Switching (UIS) Test in Production

Applications

* This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
* Motor Control
* Backlighting
* Power Management Functions
