DTM4626B N- and P-Channel MOSFET

DTM4626B Description

N- and P-Channel 30 V (D-S) MOSFET DTM4626B www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.013 at VGS = 10 V N-Channel 30 0.014 at VGS = .

DTM4626B Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

DTM4626B Applications

* Motor Drive
* Mobile Power Bank S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2 D1 G1 S1 S2 G2 D2 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol N-Channel P-Channel Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °

📥 Download Datasheet

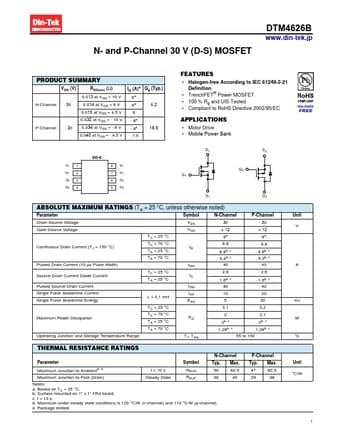

Preview of DTM4626B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTM4626B
Manufacturer
Din-Tek
File Size
443.84 KB
Datasheet
DTM4626B-DinTek.pdf
Description
N- and P-Channel MOSFET
