* DT-Trench Power MOSFET
* 100 % Rg and UIS Tested APPLICATIONS

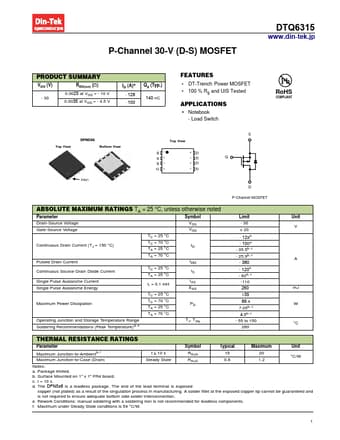

* Notebook - Load Switch RoHS COMPLIANT Top View DFN5X6 Bottom View Top View 1 8 2 7 3 6 4 5 S G PIN1 D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Sym
DTQ6315
Din-Tek
309.45 KB
P-channel mosfet.
P-Channel 30-V (D-S) MOSFET
DTQ6315
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.0025 at VGS = - 10 V - 30
0.0035 at VGS = - 4.5 V
I.
