AP1533

PWM CONTROL 1.8A STEP-DOWN CONVERTER

AP1533 Features

* Input voltage: 4V to 23V Output voltage: 0.8V to VCC Output current: 1.8A up to peak 2A Duty ratio: 0% to 99% PWM control Oscillation frequency: 300KHz typ. Soft-start like, Current limit and Enable f

AP1533 General Description

AP1533 consists of step-down switching regulator with PWM control. These devices include a reference voltage source, oscillation circuit, error amplifier, internal PMOS. AP1533 provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is able to var.

AP1533 Datasheet (248.65 KB)

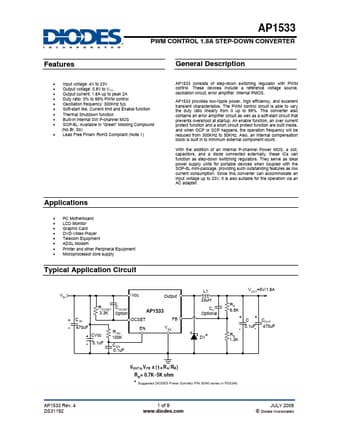

Preview of AP1533 PDF

Datasheet Details

Part number:

AP1533

Manufacturer:

DIODES ↗ Incorporated

File Size:

248.65 KB

Description:

Pwm control 1.8a step-down converter.
