AP1538 Datasheet, converter equivalent, Diodes Incorporated

AP1538 Features

  • Converter
  • www.DataSheet4U.com
  • Input voltage : 3.6V to 18V Output voltage : 0.8V to VCC Output c

PDF File Details

Part number:

AP1538

Manufacturer:

DIODES ↗ Incorporated

File Size:

407.52kb

Download:

📄 Datasheet

Description:

18v 3a 300khz buck converter. AP1538 consists of step-down switching regulator with PWM control. These devices include a reference voltage source, oscillation circ

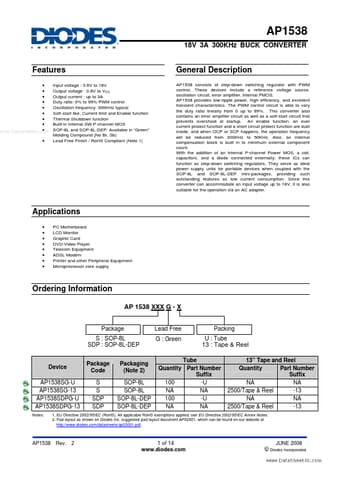

Datasheet Preview: AP1538 📥 Download PDF (407.52kb)
Page 2 of AP1538 Page 3 of AP1538

AP1538 Application

  • Applications
  • PC Motherboard LCD Monitor Graphic Card DVD-Video Playe
