AH1902 HIGH SENSITIVITY MICROPOWER OMNIPLOAR HALL-EFFECT SWITCH

📥 Download Datasheet  Datasheet Preview Page 1

Description

NEW PRODUCT AH1902 HIGH SENSITIVITY MICROPOWER OMNIPLOAR HALL-EFFECT SWITCH .
The AH1902 is a high sensitivity micropower Omnipolar Hall effect switch IC with internal pull up and pull down capability.

📥 Download Datasheet

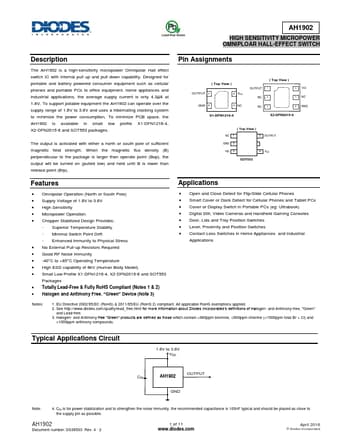

Preview of AH1902 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AH1902
Manufacturer
DIODES ↗
File Size
530.53 KB
Datasheet
AH1902-Diodes.pdf
Description
HIGH SENSITIVITY MICROPOWER OMNIPLOAR HALL-EFFECT SWITCH

Applications

* the average supply current is only 4.3μA at 1.8V. To support potable equipment the AH1902 can operate over the supply range of 1.6V to 3.6V and uses a hibernating clocking system to minimize the power consumption. To minimize PCB space the AH1902 is available in small low profile X1-DFN1216-4, X2-D
