AH1913 ULTRA HIGH SENSITIVITY DIGITAL OMNIPOLAR HALL-EFFECT SWITCH

📥 Download Datasheet Datasheet Preview Page 1

Description

NEW PRODUCT AH1913 ULTRA HIGH SENSITIVITY DIGITAL OMNIPOLAR HALL-EFFECT SWITCH .
The AH1913 is an ultra-high sensitivity, digital-omnipolar, Hall effect switch IC from Diodes broad Hall effect switches family.

📥 Download Datasheet

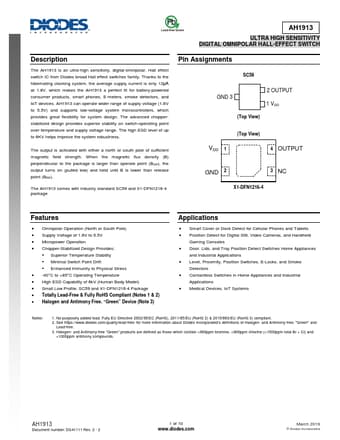

Preview of AH1913 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AH1913
Manufacturer
DIODES ↗
File Size
397.07 KB
Datasheet
AH1913-Diodes.pdf
Description
ULTRA HIGH SENSITIVITY DIGITAL OMNIPOLAR HALL-EFFECT SWITCH

Features

* Omnipolar Operation (North or South Pole)
* Supply Voltage of 1.6V to 5.5V
* Micropower Operation
* Chopper-Stabilized Design Provides:
* Superior Temperature Stability
* Minimal Switch Point Drift
* Enhanced Immunity to Physical Stress
* -40°C t

Applications

* Smart Cover or Dock Detect for Cellular Phones and Tablets
* Position Detect for Digital Still, Video Cameras, and Handheld Gaming Consoles
* Door, Lids, and Tray Position Detect Switches Home Appliances and Industrial Applications
* Level, Proximity, Position Switc
