* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability Mechanical Da

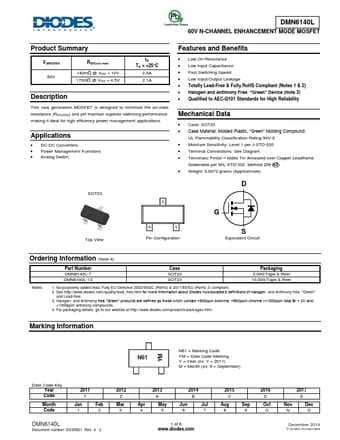

DMN6140L Datasheet (532.02 KB)
DMN6140L
532.02 KB
N-channel mosfet.
NEW PRODUCT
DMN6140L
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS 60V
RDS(on) max
140m @ VGS = 10V 170m @ VGS = 4.5V
ID TA = .
