PAM2321 Datasheet, Converter, Diodes

PAM2321 Features

  • Converter
  • 2A Maximum Output Current
  • Tiny 0.47µH Chip Inductor
  • Excellent Transient Response
  • Input Voltage: 2.7V to 5.5V
  • Fixed or Adjustable Output

PDF File Details

Part number:

PAM2321

Manufacturer:

DIODES ↗

File Size:

348.84kb

Download:

📄 Datasheet

Description:

Fast transient 2a step-down converter. The PAM2321 is a 2A step-down converter with a typical input voltage of 3.3V and a fixed output voltage of 1.2V or an adjustable outp

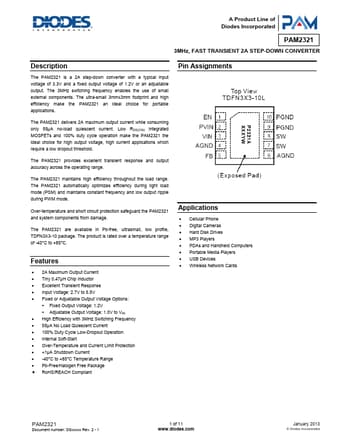

Datasheet Preview: PAM2321 📥 Download PDF (348.84kb)
Page 2 of PAM2321 Page 3 of PAM2321

PAM2321 Application

  • Applications The PAM2321 delivers 2A maximum output current while consuming only 55µA no-load quiescent current. Low RDS(ON) integrated MOSFETs and
