PAM2325 Datasheet, Converter, Diodes

PAM2325 Features

  • Converter
  • 3.5A Maximum Output Current
  • Tiny 1.0µH Chip Inductor
  • Excellent Transient Response
  • Input Voltage: 2.5V to 5.5V
  • Adjustable Output Voltage

PDF File Details

Part number:

PAM2325

Manufacturer:

DIODES ↗

File Size:

542.64kb

Download:

📄 Datasheet

Description:

Fast transient 3.5a step-down converter. The PAM2325 is a 3.5A step-down synchronous converter. The 1.2MHz switching frequency enables the use of small external components. T

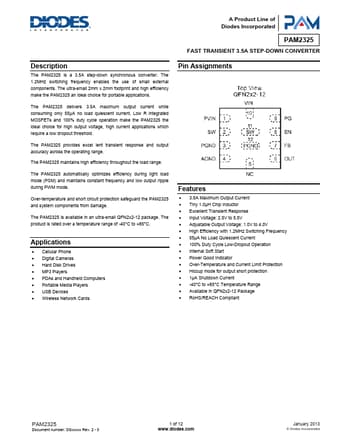

Datasheet Preview: PAM2325 📥 Download PDF (542.64kb)
Page 2 of PAM2325 Page 3 of PAM2325

PAM2325 Application

  • Applications The PAM2325 delivers 3.5A maximum output current while consuming only 55µA no load quiescent current. Low R integrated MOSFETs and 100
