PAM2322AGEAR - Dual High-Efficiency PWM Step-Down DC-DC Converter

PAM2322AGEAR Description

A Product Line of Diodes Incorporated PAM2322AGEAR Dual High-Efficiency PWM Step-Down DC-DC Converter ADVANCED INFORMATION .
The PAM2322AGEAR is a dual step-down current-mode, DC-DC converter.

PAM2322AGEAR Features

* include under-voltage lockout, soft-start, hiccup mode short circuit protection and thermal shutdown. Features
* Supply Voltage:2.7V to 5.5V
* Output Current: OUT1: 1000mA/Buck, 1.8V Fixed Output OUT2: 2000mA/Buck
* Switching Frequency:1.2MHz
* Internal Synchronous Rectifier
* F

PAM2322AGEAR Applications

* the PAM2322AGEAR provides a power-saving Pulse-Skipping Modulation (PSM) mode to reduce quiescent current under light load operation Pin Assignments The PAM2322AGEAR supports a range of input voltages from 2.7V to 5.5V, allowing the use of a single Li+/Li-polymer cell, multiple Alkaline/NiMH cell

📥 Download Datasheet

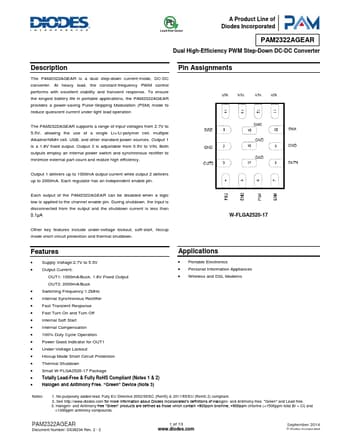

Preview of PAM2322AGEAR PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM2322AGEAR
Manufacturer
DIODES ↗
File Size
692.40 KB
Datasheet
PAM2322AGEAR-Diodes.pdf
Description
Dual High-Efficiency PWM Step-Down DC-DC Converter
