PAM2327 Datasheet, Converter, Diodes

PAM2327 Features

• Converter
• 3.5A Maximum Output Current
• Tiny 1.0µH Chip Inductor
• Excellent Transient Response
• Input Voltage: 2.5V to 5.5V
• Adjustable Output Voltage

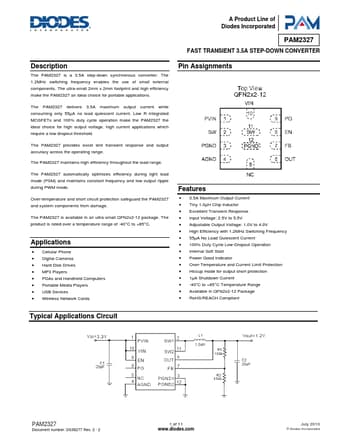

PDF File Details

Part number:

PAM2327

Manufacturer:

DIODES ↗

File Size:

316.11kb

Download:

📄 Datasheet

Description:

Fast transient 3.5a step-down converter. The PAM2327 is a 3.5A step-down synchronous converter. The 1.2MHz switching frequency enables the use of small external components. T

PAM2327 Application

• Applications The PAM2327 delivers 3.5A maximum output current while consuming only 55µA no load quiescent current. Low R integrated MOSFETs and 100

TAGS

PAM2327

Diodes
