M12L32321A-6BG2G

512K x 32Bit x 2Banks Synchronous DRAM

M12L32321A-6BG2G Datasheet (526.90 KB)

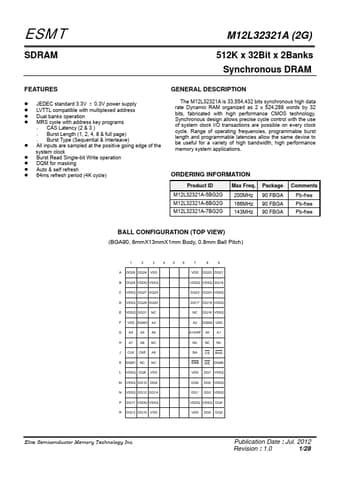

Preview of M12L32321A-6BG2G PDF Datasheet

Datasheet Details

Part number:

M12L32321A-6BG2G

Manufacturer:

ESMT

File Size:

526.90 KB

Description:

512k x 32bit x 2banks synchronous dram

M12L32321A-6BG2G Features

* JEDEC standard 3.3V ± 0.3V power supply

* LVTTL compatible with multiplexed address

* Dual banks operation

* MRS cycle with address key programs - CAS Latency (2 & 3 ) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave)

* All inputs are sampled at the

M12L32321A-6BG2G General Description

The M12L32321A is 33,554,432 bits synchronous high data rate Dynamic RAM organized as 2 x 524,288 words by 32 bits, fabricated with high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range.
