ETA1477

High Efficiency Synchronous Step-Down Converter

ETA1477 Features

* Wide Input Range: 4.5V-18V

* Adaptive COT Control

* Ultra-fast Load Transient Response

* High Efficiency PFM Mode at Light Load

* High Efficiency Synchronous Operation

* No Load IQ 177uA

* Low Rdson Internal Power FETs

* Capable of Delivering 2A

* No External Co

ETA1477 General Description

ETA1477 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 2A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies .

ETA1477 Datasheet (0.98 MB)

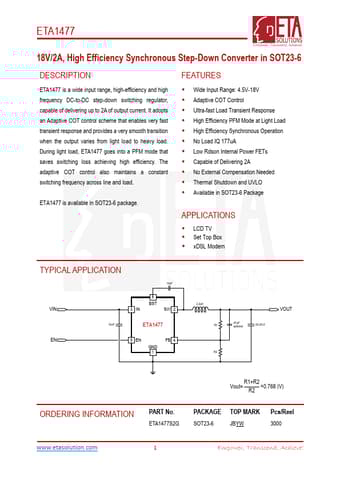

Preview of ETA1477 PDF

Datasheet Details

Part number:

ETA1477

Manufacturer:

ETA

File Size:

0.98 MB

Description:

High efficiency synchronous step-down converter.
