ETA1478

High Efficiency Synchronous Step-Down Converter

ETA1478 Features

* Wide Input Range: 4.5V-18V

* High Efficiency PFM mode at light load

* Capable of Delivering 2A

* No External Compensation Needed

* Current Mode Control

* Thermal Shutdown and UVLO

* Excellent Load and Line Transient Response

* Available in SOT23-6 Package APPLICATIO

ETA1478 General Description

ETA1478 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 2A of output current. With a fixed switching frequency of 500KHz, this current mode PWM controlled converter allows the use of small external components, such as cera.

ETA1478 Datasheet (819.49 KB)

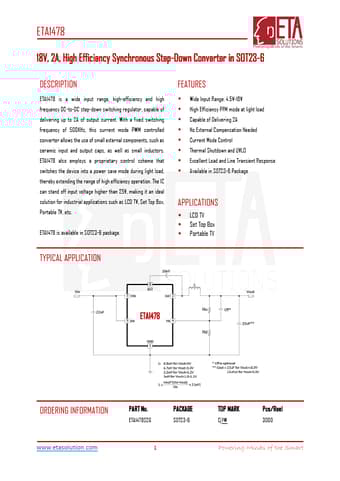

Preview of ETA1478 PDF

Datasheet Details

Part number:

ETA1478

Manufacturer:

ETA

File Size:

819.49 KB

Description:

High efficiency synchronous step-down converter.
