IN74HC123 Datasheet - ETC

IN74HC123 DUAL RETRIGGERABLE MONOSTABLE MULTIVIBRATOR

IN74HC123 DUAL RETRIGGERABLE MONOSTABLE MULTIVIBRATOR The IN74HC123 is identical in pinout to the LS/ALS123. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. There are two trigger inputs, A INPUT (negative edge) and B INPUT (positive edge). These inputs are valid for rising/falling signals. The device may also be triggered by using the CLR input (positive-edge) because of the Schmitt-trigger input; after triggering t.

IN74HC123 Datasheet (160.35 KB)

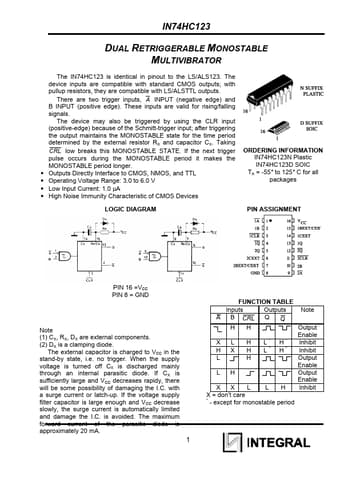

Preview of IN74HC123 PDF
IN74HC123 Datasheet Preview Page 2 IN74HC123 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC123

Manufacturer:

ETC

File Size:

160.35 KB

Description:

Dual retriggerable monostable multivibrator.
