IN74HC166 8-Bit Serial or Parallel-Input/ Serial-Output Shift Register High-Performance Silicon-Gate CMOS

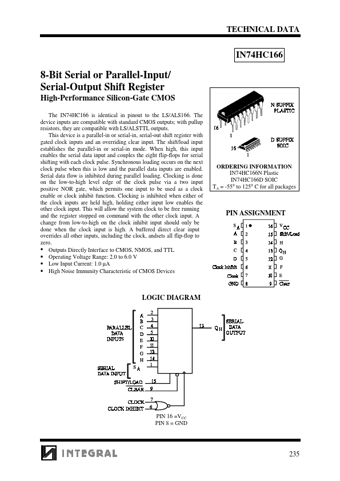

TECHNICAL DATA IN74HC166 8-Bit Serial or Parallel-Input/ Serial-Output Shift Register High-Performance Silicon-Gate CMOS The IN74HC166 is identical in pinout to the LS/ALS166. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device is a parallel-in or serial-in, serial-out shift register with gated clock inputs and an overriding clear input. The shift/load input establishes the parallel-in or serial-in mode. Wh.

IN74HC166_ETC.pdf

IN74HC166 Datasheet Preview — Preview of IN74HC166 PDF

Datasheet Details

Part number:

IN74HC166

Manufacturer:

ETC

File Size:

153.04 KB

Description:

8-bit serial or parallel-input/ serial-output shift register high-performance silicon-gate cmos.
