IN74HC139A Datasheet - ETC

IN74HC139A Dual 1-of-4 Decoder/Demultiplexer High-Performance Silicon-Gate CMOS

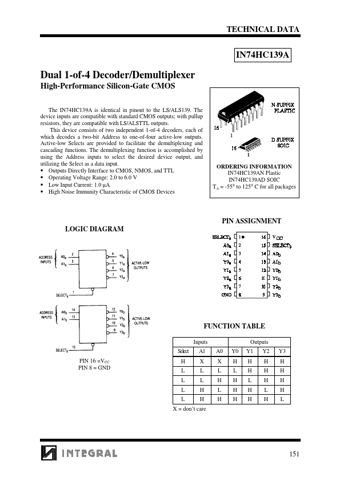

TECHNICAL DATA IN74HC139A Dual 1-of-4 Decoder/Demultiplexer High-Performance Silicon-Gate CMOS The IN74HC139A is identical in pinout to the LS/ALS139. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device consists of two independent 1-of-4 decoders, each of which decodes a two-bit Address to one-of-four active-low outputs. Active-low Selects are provided to facilitate the demultiplexing and cascading function.

IN74HC139A Datasheet (103.05 KB)

Preview of IN74HC139A PDF
IN74HC139A Datasheet Preview Page 2 IN74HC139A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC139A

Manufacturer:

ETC

File Size:

103.05 KB

Description:

Dual 1-of-4 decoder/demultiplexer high-performance silicon-gate cmos.
