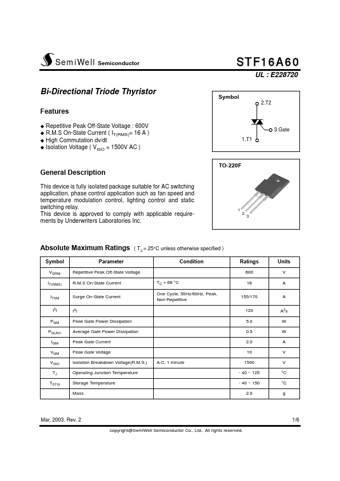

STF16A60 Datasheet, Thyristor, ETC

STF16A60 Features

• Thyristor Repetitive Peak Off-State Voltage : 600V
• R.M.S On-State Current ( IT(RMS)= 16 A )
• High Commutation dv/dt
• Isolation Voltage ( VISO = 1500V AC )
• 2

PDF File Details

Part number:

STF16A60

Manufacturer:

ETC

File Size:

658.89kb

Download:

📄 Datasheet

Description:

Bi-directional triode thyristor. This device is fully isolated package suitable for AC switching application, phase control application such as fan speed and temperat
