STF16N50M2 N-CHANNEL POWER MOSFET

STF16N50M2 Description

STD16N50M2, STF16N50M2, STP16N50M2 Datasheet N-channel 500 V, 0.24 Ω typ., 13 A MDmesh™ M2 Power MOSFETs in DPAK, TO-220FP and TO-220 packages TAB 3 .
These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 technology.

STF16N50M2 Features

* Order code STD16N50M2 STF16N50M2 STP16N50M2 VDS at TJ max. RDS(on) max. 550 V 0.28 Ω
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* 100% avalanche tested

📥 Download Datasheet

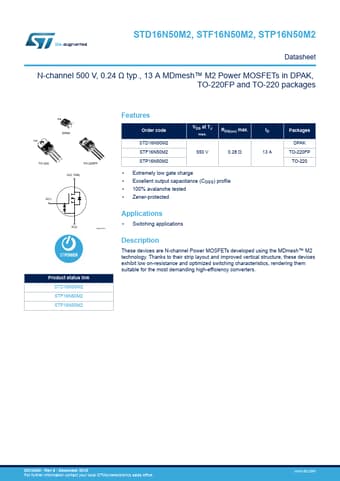

Preview of STF16N50M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
