STF16N60M2 N-channel Power MOSFET

STF16N60M2 Description

STF16N60M2 N-channel 600 V, 0.28 Ω typ., 12 A MDmesh™ M2 Power MOSFET in a TO-220FP package Datasheet - production data 3 12 TO-220FP Figure 1: Inte.
This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology.

STF16N60M2 Features

* Order code STF16N60M2 VDS 600 V RDS(on) max. 0.32 Ω ID 12 A
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* 100% avalanche tested

📥 Download Datasheet

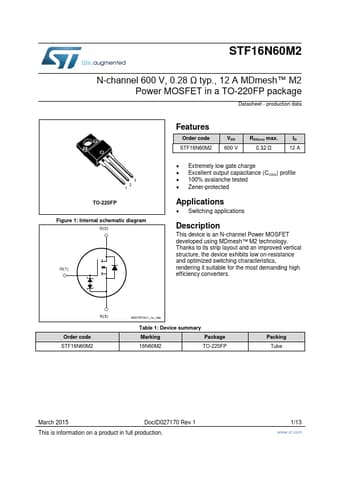

Preview of STF16N60M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
