STF16N65M5 N-channel Power MOSFET

STF16N65M5 Description

STF16N65M5, STI16N65M5 STP16N65M5,STU16N65M5,STW16N65M5 N-channel 650 V, 0.230 Ω, 12 A MDmesh™ V Power MOSFET in TO-220FP, I²PAK, TO-220, IPAK, TO-247.
These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelec.

STF16N65M5 Features

* Type STF16N65M5 STI16N65M5 STP16N65M5 STU16N65M5 STW16N65M5 VDSS @ TJmax RDS(on) max 710 V < 0.279 Ω
* Worldwide best RDS(on)
* Higher VDSS rating
* High dv/dt capability
* Excellent switching performance
* Easy to drive
* 100% avalanche tested ID 12 A TAB TAB 3 2 1

📥 Download Datasheet

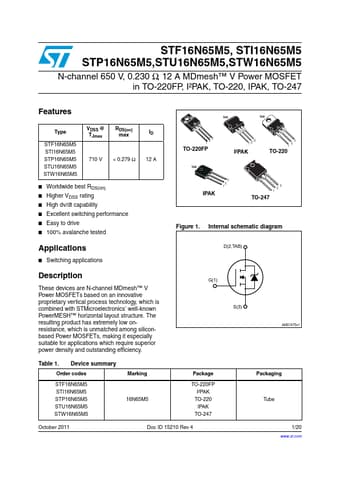

Preview of STF16N65M5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
