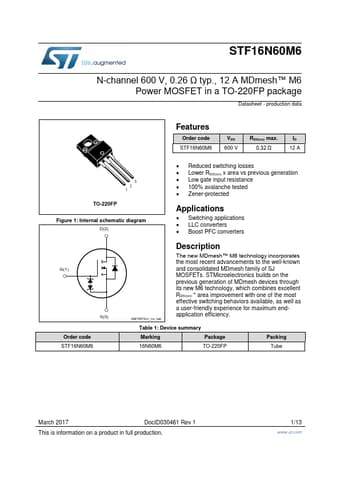

STF16N60M6 Datasheet, Mosfet, STMicroelectronics

STF16N60M6 Features

• Mosfet Order code STF16N60M6 VDS 600 V RDS(on) max. 0.32 Ω ID 12 A TO-220FP Figure 1: Internal schematic diagram D(2)
• Reduced switching losses
• Lower RDS(on) x area vs

PDF File Details

Part number:

STF16N60M6

Manufacturer:

STMicroelectronics ↗

File Size:

574.55kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFET

STF16N60M6 Application

• Applications
• Switching applications
• LLC converters
• Boost PFC converters G(1) S(3) Order code STF16N60M6 AM15572v1_no
