STF16N65M2 Datasheet - STMicroelectronics

STF16N65M2 - N-channel Power MOSFET

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology.

Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters.

Orde

STF16N65M2 Features

* Order code VDS @ TJmax RDS(on) max ID STF16N65M2 710 V 0.36 Ω 11 A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected 72)3 Figure 1. Internal schematic diagram , TAB Applications

* Sw

STF16N65M2-STMicroelectronics.pdf

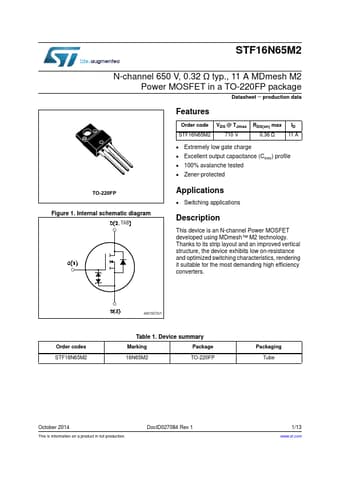

STF16N65M2 Datasheet Preview — Preview of STF16N65M2 PDF

Datasheet Details

Part number:

STF16N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

760.49 KB

Description:

N-channel power mosfet.
