SM1520C - Schottky Barrier Rectifiers

Product Overview

Eris

📥 Download Datasheet

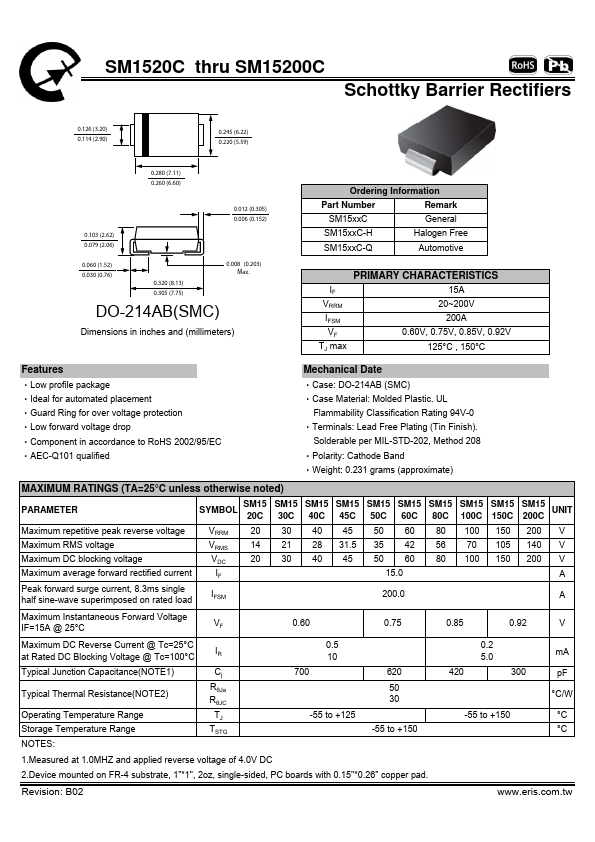

SM1520C Schottky Barrier Rectifiers by Eris - Datasheet Preview — Datasheet preview – SM1520C

Datasheet Details

Part number	SM1520C
Manufacturer	Eris
File Size	185.08 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM1520C Datasheet

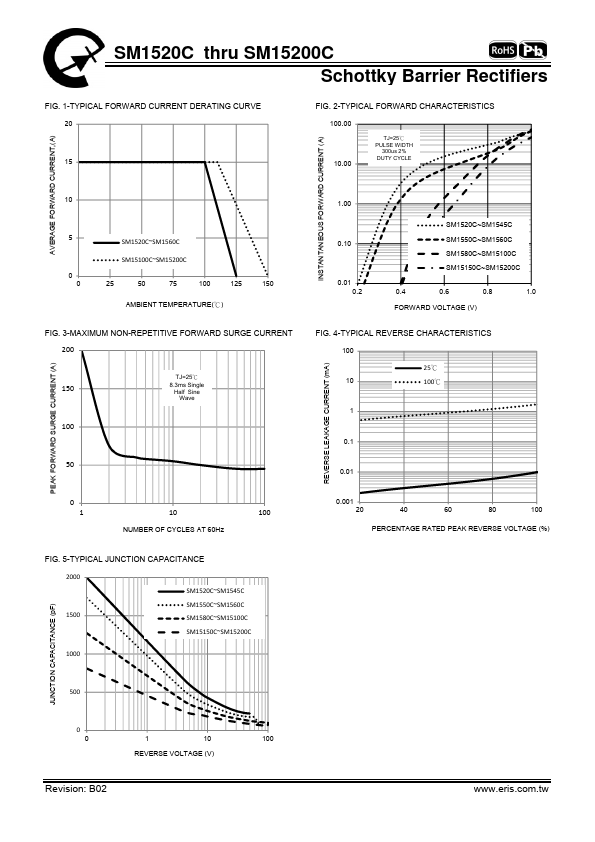

Additional preview pages of the SM1520C datasheet.

Product details

Features

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate).
