SM1560SD2, SM1520SD2 Schottky Barrier Rectifiers

📥 Download Datasheet  Datasheet Preview Page 1

Description

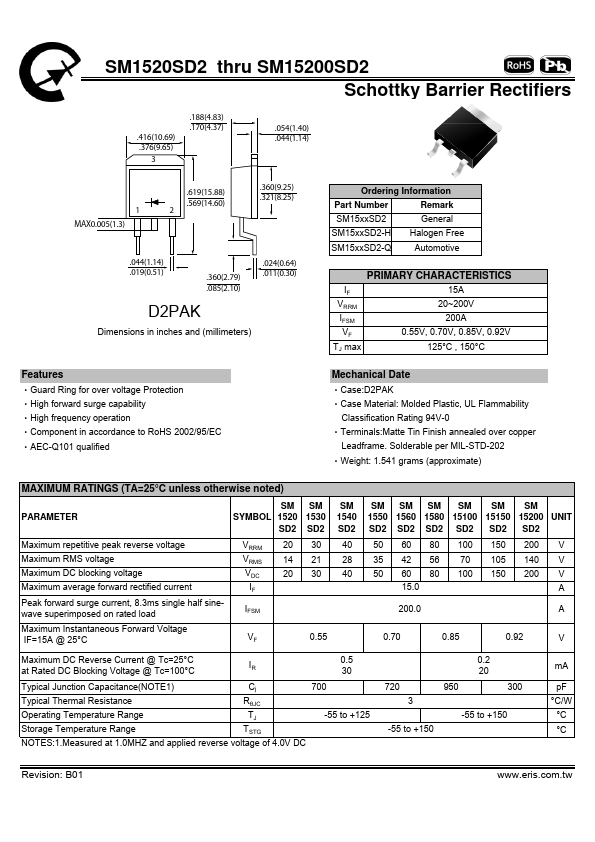

SM1520SD2 thru SM15200SD2 Schottky Barrier Rectifiers .416(10.69) .376(9.65) 3 .188(4.83) .170(4.37) .054(1.40) .044(1.14) 1 MAX0.005(1.3) .619(1.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM1560SD2, SM1520SD2. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
SM1560SD2, SM1520SD2
Manufacturer
Eris
File Size
205.32 KB
Datasheet
SM1520SD2-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM1560SD2, SM1520SD2.
Please refer to the document for exact specifications by model.

Features

* ‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SM15xxSD2 Remark General SM15xxSD2-H Halogen Free SM15xxSD2-Q Automotive PRIMARY CHARACTERISTICS I
