XRD98L59

CCD Image Digitizers with CDS/ PGA and 10-Bit A/D

XRD98L59 Features

* 10-bit Resolution ADC

* 20MHz Sampling Rate

* Programmable Gain: 6dB to 38dB PGA (2x to 80x)

* Improved Digitally Controlled Offset-Calibration with Pixel Averager and Hot Pixel Clipper

* DNS Filter Removes Black Level Digital Noise

* Widest Black Le

XRD98L59 General Description

The XRD98L59 is a complete low power CCD Image Digitizer for digital, motion and still cameras. The product includes a high bandwidth differential Correlated Double Sampler (CDS), 8-bit digitally Programmable Gain Amplifier (PGA), 10-bit Analog-to-Digital Converter (ADC) and improved digitally contr.

XRD98L59 Datasheet (349.32 KB)

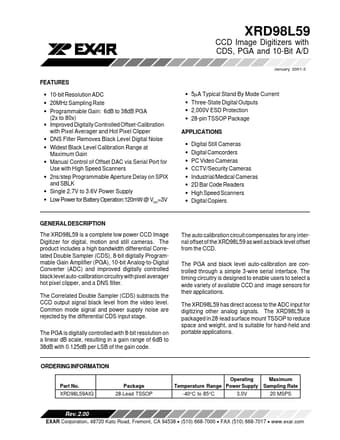

Preview of XRD98L59 PDF

Datasheet Details

Part number:

XRD98L59

Manufacturer:

Exar Corporation

File Size:

349.32 KB

Description:

Ccd image digitizers with cds/ pga and 10-bit a/d.
