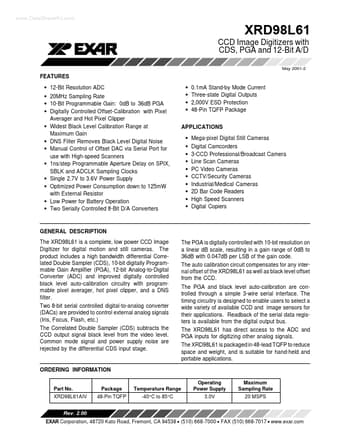

XRD98L61 - CCD Image Digitizers

Exar

Datasheet Details

The XRD98L61 is a complete, low power CCD Image Digitizer for digital motion and still cameras.

12-Bit Resolution ADC.
20MHz Sampling Rate.
10-Bit Programmable Gain: 0dB to 36dB PGA.
Digitally Controlled Offset-Calibration with Pixel Averager and Hot Pixel Clipper.
Widest Black Level Calibration Range at Maximum Gain.
DNS Filter Removes Black Level Digital Noise.
Manual Control of Offset DAC via Serial Port for use with High-speed Scanners.
1ns/step Programmable Aperture Delay on SPIX, SBLK and ADCLK Sampling Clocks.
